2026 Diamond T (Flatbed Trailer) 8.5-32 tandem dual gooseneck w/ maxx ramps 24k gvwr (diat037294)

Many trailers available!

102” Wide

32’ Long

2-10k Axles

10ply tires

2 jacks

MAXX ramps

New 32’ long(27’ flat+5’ dove) 102” wide deck gooseneck from Diamond T. This trailer has 2-10k dexter axles with electric brakes and two 12k Jacks at the front. This unit has MAXX ramps on the rear with a double spring assist system to help make folding and unfolding the ramps much easier. Toolbox and mounted spare tire in the neck. The deck is stained by us to help protect against the weather.

• Lockable Toolbox in Neck

• Torque Tube for Flex Control

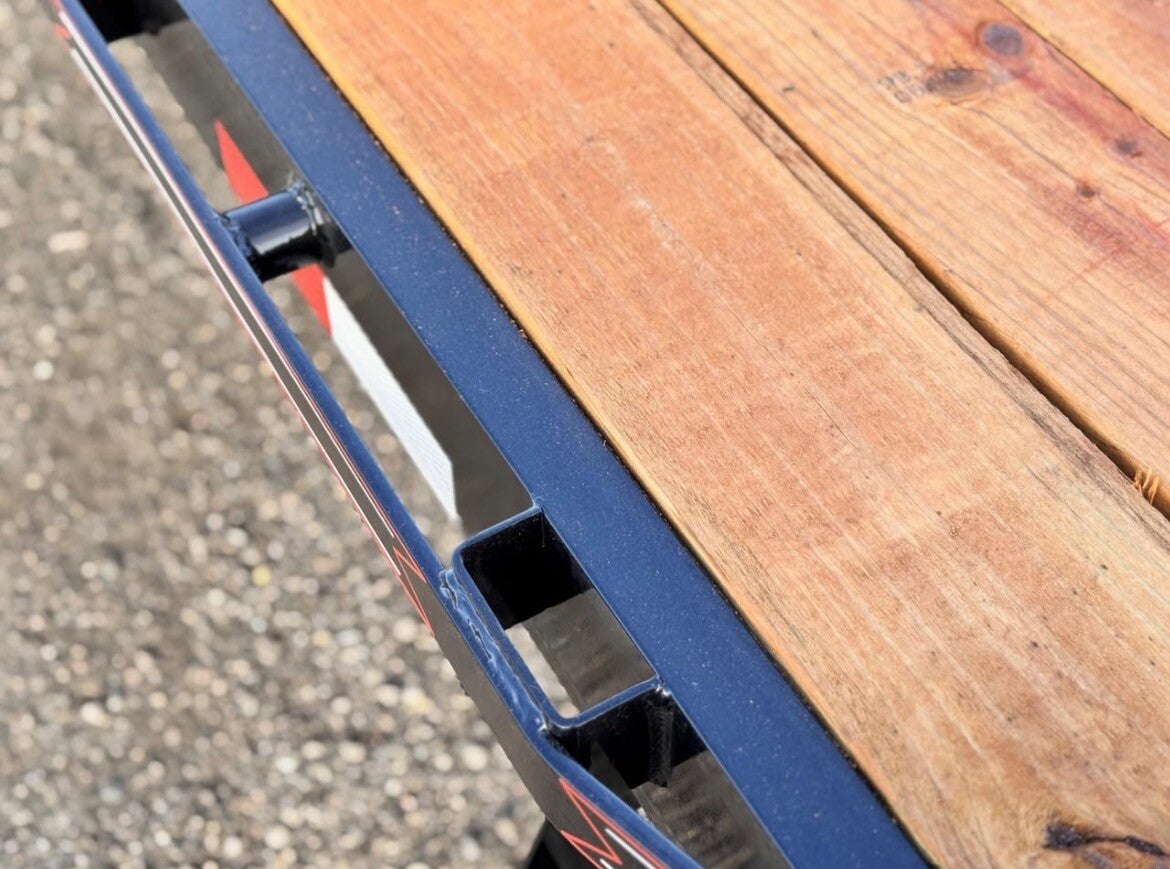

• Pipe Spools in Rub Rail

• Side Marker/Turn Lights

• See Thru Headache Rack

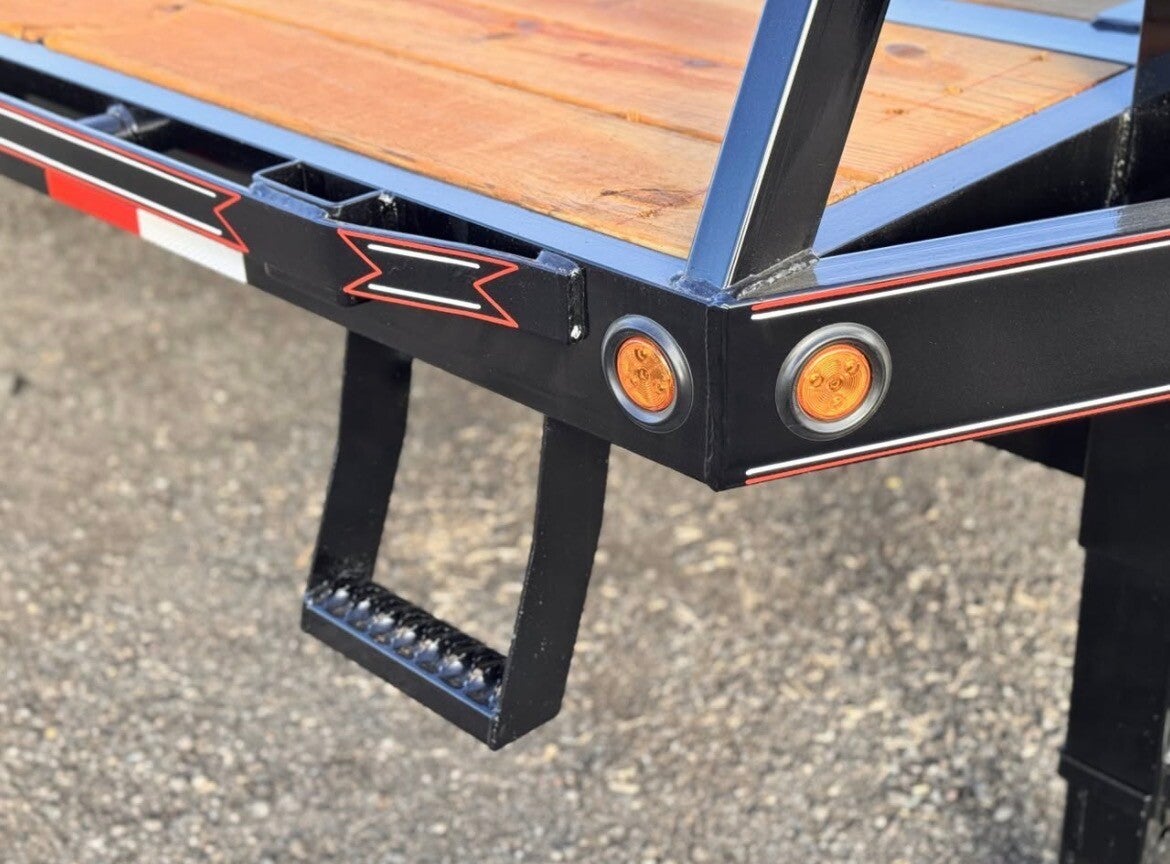

• Front Steps w/ Grab Handles

• Sealed Factory Wiring Harness

• Low Profile PIERCED Beam Frame

• 100% Prime and Paint

• All Sealed LED Lights

• 5' Dovetail w/ H.D. Tubing Tailboard

• Double Hinge - Spring Assist Ramps

TECHNICAL SPECIFICATIONS

Coupler: 2 5/16" Round Adj.

Jacks: 2-12000 lb rated Dropleg

Safety Chains: 3/8" w/Sliphook

Neck: 12" WF Beam

Main Frame: 12"x19 lb rated PIERCED Beam

Outer Frame: 5" Channel

Rubrail: 3/8"x2" Flat w/SP 2' OC

Cross Members: 3" Channel 16" Spacing

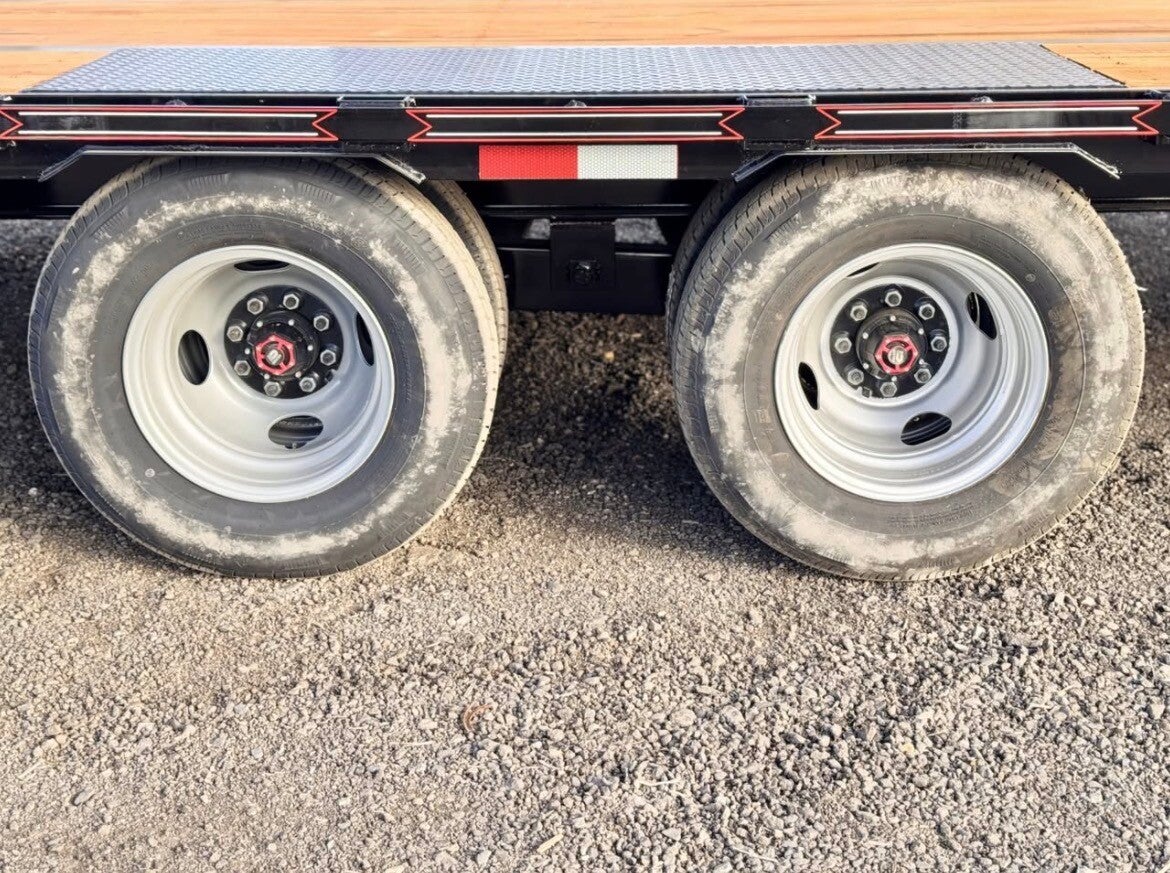

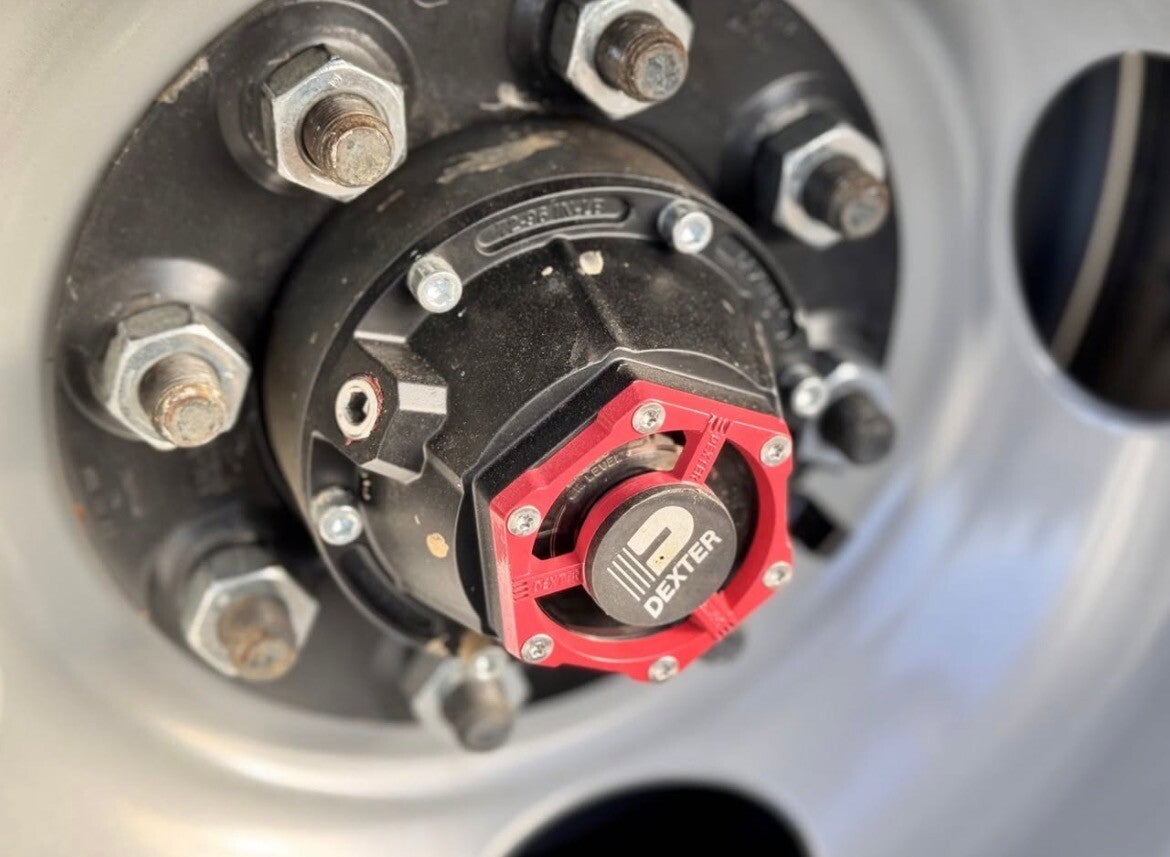

Axles: 2-10000 lb rated Dexter Oil Bath Electric Brake

Suspension: Dexter 5 Leaf Slipper

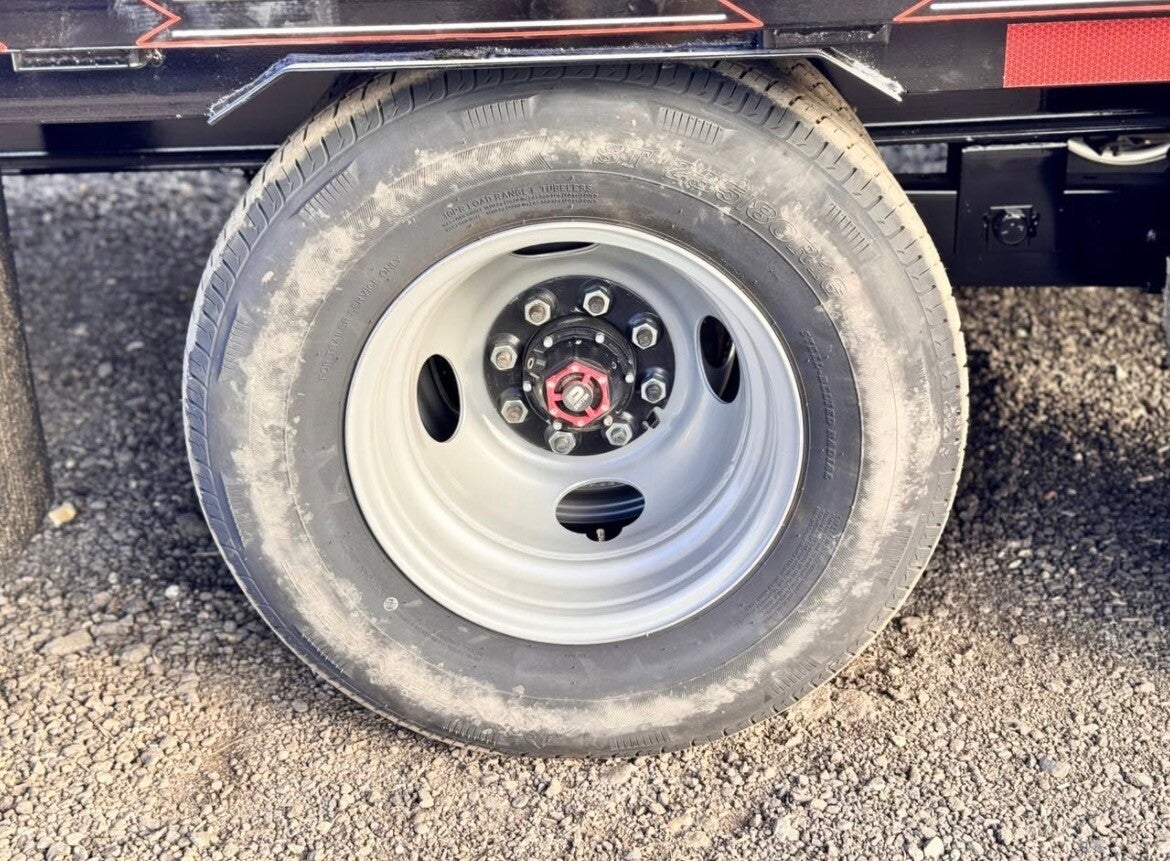

Tires: 235/16 ST Load Range E Radial

Wheels: 16" 8 on 6 1/2" Dual

Dovetail: 5' All Steel Dovetail and Ramps

Flooring: 2x8 Pressure Treated Pine

Lights: All Sealed LED Stop, Tail, Turn and Clearance

Finish: Phosphate etched, primed, 2 coats acrylic enamel
